Dc-Motors
Brushless and gearless motors also with tire mounting for transport tasks not only in the industrial sector
Powerful geared motor as a Rim motor or Hub Motor.
powerful geared motor as a rim motor or for spokes,

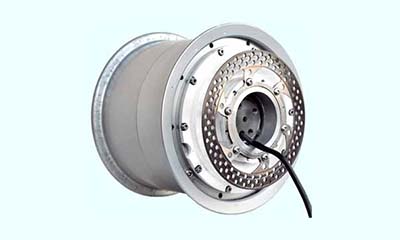

Geared motor roller with double
reduction.
Power 250W Rated voltage: 24V-60V Speed under load: 1.5 rpm/V - 54 rpm at 36V.

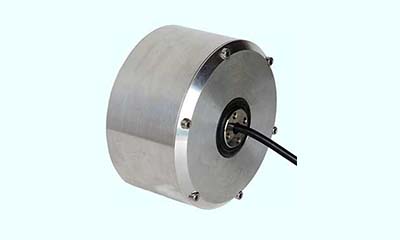

Geared motor roller with
double.
Power 250W Rated voltage: 24V-60V Speed under load: 5.1rpm/V - 185rpm at 36V.

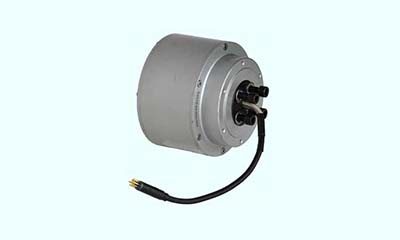

Motorized roller for one-sided mounting.
Power 200W Rated voltage: 24V-60V Speed under load: 6.4rpm/V - 230rpm at 36V.

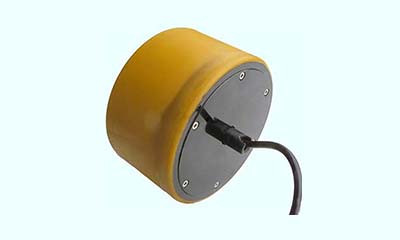

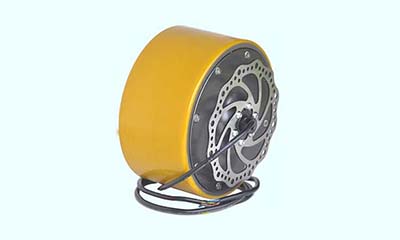

Heavy duty motorized castor with PU coating
Power 300W Rated voltage: 24V-60V Speed under load: 6.4rpm/V - 230rpm at 36V
Heavy duty motorized castor with PU coating.
Power 800W Rated voltage: 24V-60V Speed under load: 6.4rpm/V - 230rpm at 36V

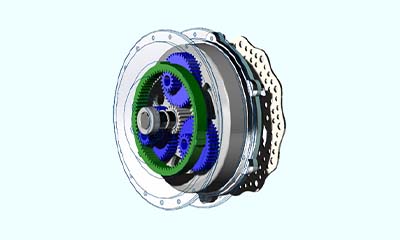

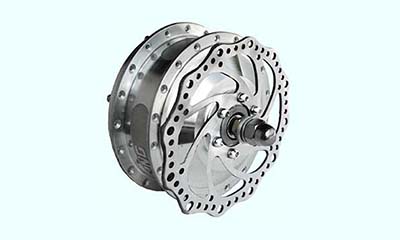

engine with gearbox.
The motor has a built-in low-noise planetary gear with freewheel and is very compact despite its high performance.

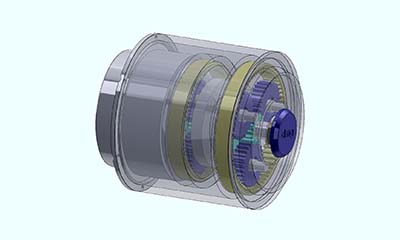

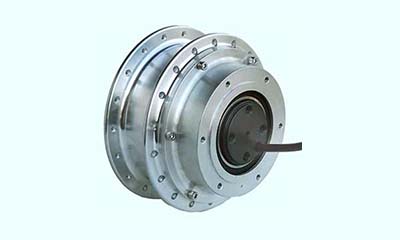

Motor with gearbox that can be mounted on one side.
The motor with low-noise planetary gear and freewheel can be hung on one side.

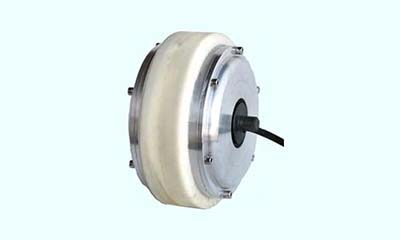

Motor with PU coating.
Power 200W Rated voltage: 24V-60V
Speed under load: 6.4rpm/V - 230rpm
at 36V.

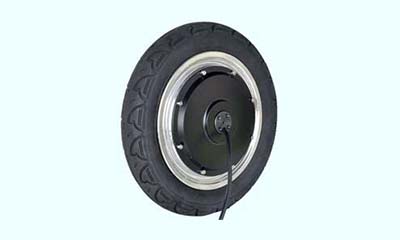

Motor with solid rubber tires.
Power(S1) 200W (Usable from 24-48V) Speed under load: 16 rpm/V - 580 rpm at 36V Torque in the optimal load range approx. 15 Nm.

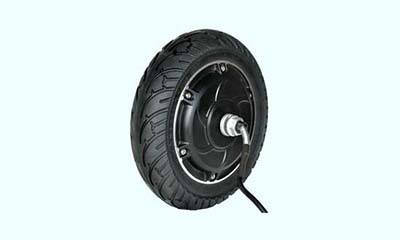

Motor with 8" rim and one-sided mounting.
Power(S1) 250W (Usable from 24-48V) Speed under load: 10 rpm/V - 360 rpm at 36V Torque in the optimum load range approx. 20 Nm.

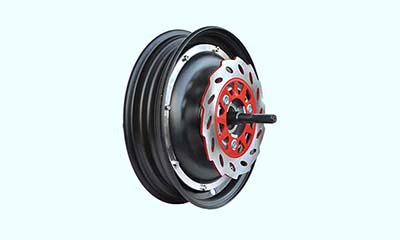

Rim motor with brake disc.
Power: 800W Rated voltage: 36V-60V Speed under load: 7.2 rpm/V - 260 rpm at 36V.Torque in the optimal load range approx. 40 Nm
Rim motor with brake disc.
Power: 800W Rated voltage: 36V-60V Speed under load: 7.2 rpm/V - 260 rpm at 36V Torque in the optimal load range approx. 40 Nm.

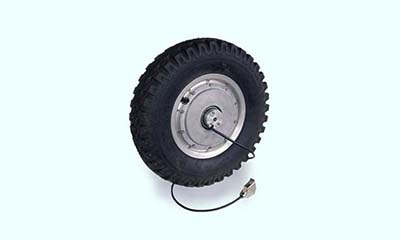

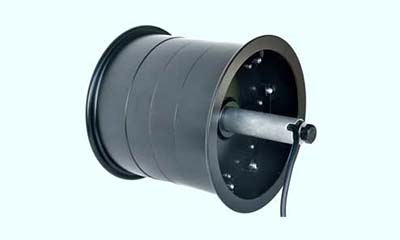

Motor with thru-axle assembly for wheelbarrows, etc.
Power (S1)250W 36V Speed under load: 6.9 rpm/V - 250 rpm at 36V Torque in the optimal load range approx. 17 Nm.
Powerful motor with rim.
Power (S1) 1kW 48V (usable from 36-100V) Fork width 183mm, rim width 54mm, motor width 100mm with brake disc with 180 mm diameter.
