ENGINES
All motors are maintenance-free and waterproof (not submersible). In the nominal load range, even after several hours of operation, there is only slight heating. All motors are brushless DC motors (BLDC) with 3 star-connected phases and 3 Hall sensors (operating voltage 5V, open collector output). A motor controller is required to operate the motors. If a controller is also ordered, the motors will be supplied with the appropriate connector. The motors are also suitable as generators and therefore also for recuperation (if no freewheel is installed) with good efficiency.
AYM-5inch-TRON-36 (motor with solid rubber tires)
AYM-5inch-TRON-36 200W Brushless DC Motor Motor with solid rubber tires. This electric motor is an ideal solution for electric scooter, roll robot or 200w power wheelchair. Some of our customers use this motor for material handling in industries, mechatronic solution for industrial robot and city e-scooter sharing. This electric motor can also be obtained as hub motors and we can develop this type of motor for you, specially designed for your application.
DESCRIPTION:
Motor type: Hub motors or one-side flange mounting Motor with permanent magnet. Rated Power (W): 180W / 220W Efficiency (%) ≥80 Max Speed (RPM): 350-1250 Open Size (mm): 85 Actuating Position : Front Tire Specification: 5 inch Solid Tire Cable Position: Shaft Center / Left or Right Hall Sensor: Optional Connection: Optional Brake Type : E-Brake Color: Painted Silver / Painted Black Noise (db): Under 55db Salt Spray Test (h): 24/96 Waterproof Degree : IP54 Certification: CE CCC ROHS Weight (kg): Under 2KG

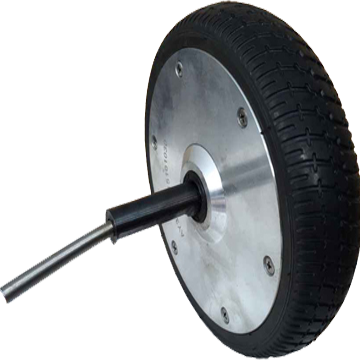

AYM-6inch-TRON-36 (Solid Tire Motor)
AYM-6inch-TRON-36 180W/220W/350W/450W Brushless DC Motor Motor with solid rubber tires. This electric motor is an ideal solution for electric scooter, roll robot or 200w power wheelchair. Some of our customers use this motor for material handling in industries, mechatronic solution for industrial robot and city e-scooter sharing. This electric motor can also be obtained as hub motors and we can develop this type of motor for you, specially designed for your application.
DESCRIPTION:
Rated voltage (v): 12V / 24V / 36V / 48V Rated power (W): 180W / 220W / 350W / 450W Efficiency (%) ≥80 Max speed (rpm): 350-1250 Open size (mm) : Actuated position : front / rear Tire specification: 6 inch solid tires Cable location: Shaft center / left or right Hall sensor: Optional Connection: Optional Brake type : E-brake Color: Painted silver / Painted black Noise (db): UNDER 55db Salt fog test (h): 24/96 Water resistance level : IP54 Certification: CE CCC ROHS Weight (kg): 2.5kg

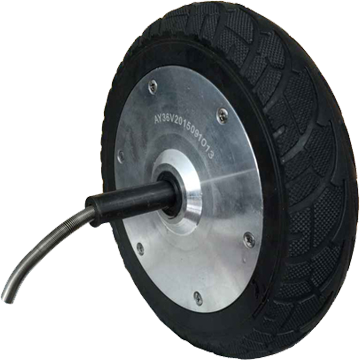

AYM-6.5inch-TRON-36 (Solid Tire Motor)
AYM-6.5inch-TRON-36 180W/220W/350W/450W Brushless DC Motor Motor with solid rubber tires. This electric motor is an ideal solution for electric scooter, roll robot or 180W/220W/350W/450W power wheelchair. Some of our customers use this motor for material handling in industries, mechatronic solution for industrial robot and city e-scooter sharing. This electric motor can also be obtained as hub motors and we can develop this type of motor for you, specially designed for your application.
DESCRIPTION:
Rated voltage (v): 12V / 24V / 36V / 48V Rated power (W): 180W / 220W / 350W / 450W Efficiency (%) ≥80 Max speed (rpm): 350-1250 Open size (mm) : Actuated position : front / rear Tire specification: 6 inch solid tires Cable location: Shaft center / left or right Hall sensor: Optional Connection: Optional Brake type : E-brake color: Painted silver / Painted black Noise (db): UNDER 55db Salt fog test (h): 24/96 Water resistance level : IP54 Certification: CE CCC ROHS Weight (kg): 2.5kg

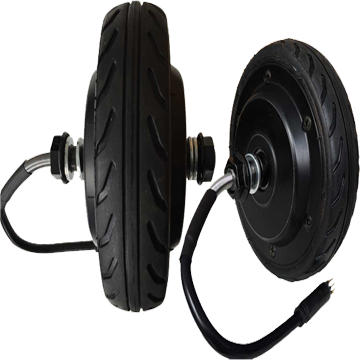

AYM-10inch-TRON-36 (motor with solid rubber tires)
AYM-10inch-TRON-36 180W/220W/350W/450W Brushless DC Motor Motor with solid rubber tires. This electric motor is an ideal solution for electric scooter, roll robot or 180W/220W/350W/450W power wheelchair. Some of our customers use this motor for material handling in industries, mechatronic solution for industrial robot and city e-scooter sharing. This electric motor can also be obtained as hub motors and we can develop this type of motor for you, specially designed for your application.
DESCRIPTION:
Rated Voltage (V): 12V / 24V / 36V / 48V Rated Power (W): 180W / 220W / 350W / 450W Efficiency (%) ≥80 Max Speed (RPM): 350-1250 Open Size (mm) : Actuated Position : Tire Specification 10 X2.125 Cable Position: Shaft Center / Left or Right Hall Sensor: Optional Connection: Optional Brake Type : E-Brake Color: Painted Silver / Painted Black Noise (db): 55DB Salt Spray Test (h) : 24/96 Waterproof Level : IP54 Certification: CE CCC ROHS Weight (kg): 4

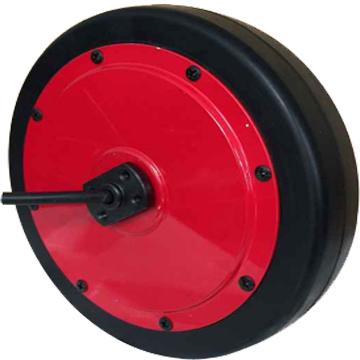

AYM-8inch-TRON-36 (Solid Tire Motor)
AYM-8inch-TRON-36 180W/220W/350W/450W Brushless DC Motor Motor with solid rubber tires. This electric motor is an ideal solution for electric scooter, roll robot or 180W/220W/350W/450W power wheelchair. Some of our customers use this motor for material handling in industries, mechatronic solution for industrial robot and city e-scooter sharing. This electric motor can also be obtained as hub motors and we can develop this type of motor for you, specially designed for your application.
DESCRIPTION:
Rated Voltage (v): 12V / 24V / 36V / 48V Rated Power (W) : 1 80W / 220W / 350W / 450W Efficiency (%) ≥80 Max Speed (RPM): 350-1250 Open Size (mm) : Actuating Position : Tire Specification : 8 inch solid rubber tires Cable position: Shaft center / left or right Hall sensor: Optional Connection: Optional Brake type : E-brake Color: Painted silver / Painted black Noise (db): 55db Salt spray test (h): 24/96 Waterproof level: IP54 Certification: CE CCC ROHS Weight (kg): 3.5
INFO
Thank you for taking the time to look at our engines. Did you find the right motor for your application? . If so email us so we can quote you, if you haven't found a motor for your application don't worry. Write us an email describing your needs and the application of the motor, we will be happy to recommend a motor or design one for you.
