Energy + Water Supply
.jpg)
Mobile Energy & Water Supply
AESB V10000KP
| Power Supply | 230 V ~50 Hz |
| Pump Rating | 1000 W |
| Inverter Power Rating | 10 KW |
| DC battery (storage) | 48V 100AH - 400AH |
| Solar Panel | 5x 450W |
| Auto power on | 1,5 bar |
| Auto power off | 1,5 -5 bar |
| Max water pressure | 5 bar |
| Max. water temperature | 45 °C |
| Max. flow rate | 3500 l/h |
| Max suction depth | 8m |
| Max. delivery height | 44m |
| Pipe Diameter | 1'' |
| Pressure Vessel | 50L |
| Dimensions (Länge x Breite x Höhe) | 800 x 700 x 800 (mm) |
| Weight | 308,8 kg |
Sound values |
EN ISO 3744:1995 |
| Sound pressure level L | 10 dB(A) |
| Sound power level L | 88 dB(A) |
| Uncertainty | 3 dB(A) |

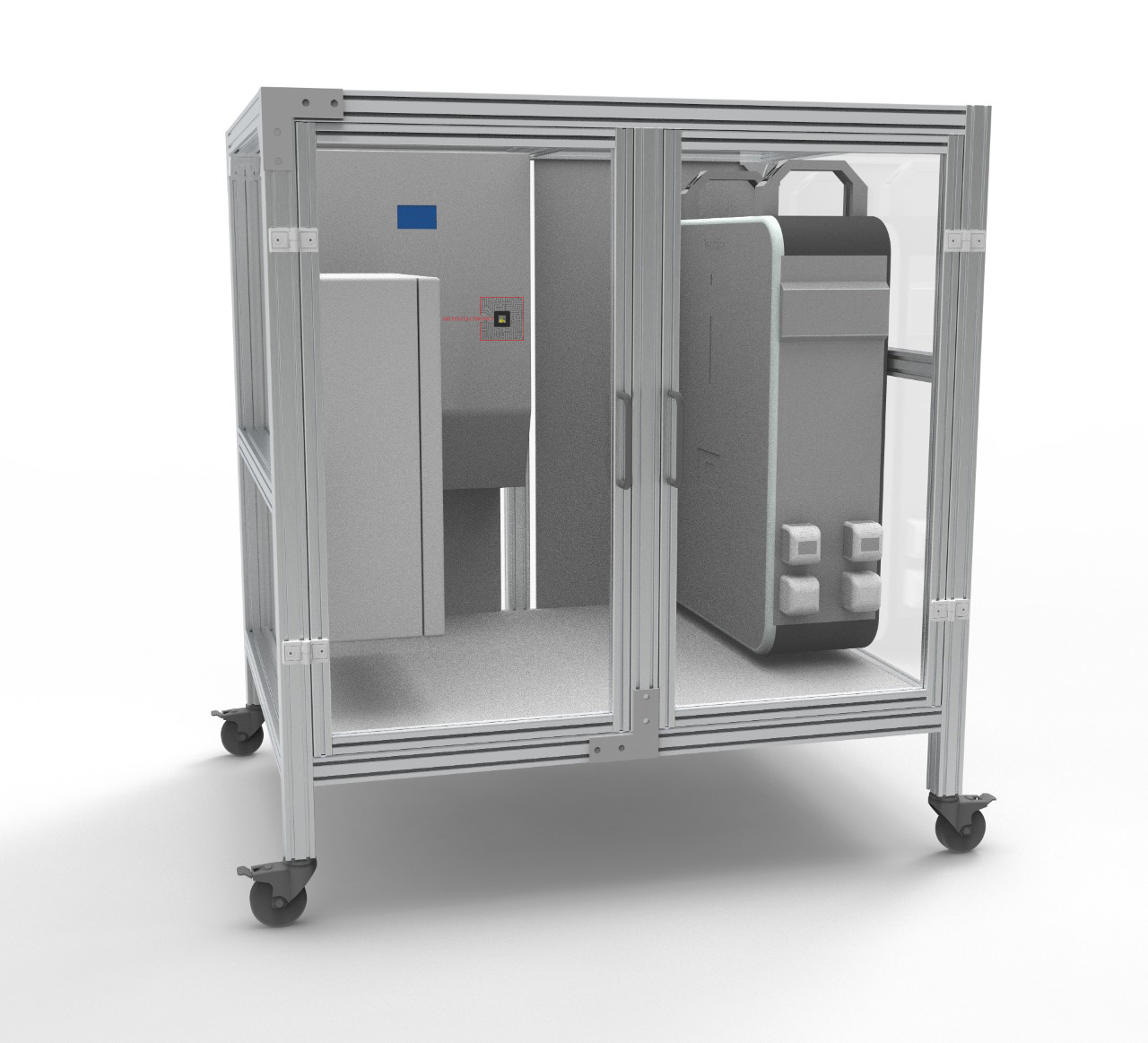

AESB V5000KP
| Power Supply | 230 V ~50 Hz |
| Inverter Power Rating | 600 W |
| Inverter Power Rating | 5 KW |
| DC battery (storage) | 48V 100AH - 200AH |
| Solar panel | 3x 450W |
| Auto power on | 1,5 bar |
| Auto power off | 1,5 -5 bar |
| Max. water pressure | 5 bar |
| Max. water temperature | 45 °C |
| Max. flow rate | 3000 l/h |
| Max suction depth | 8m |
| Max. delivery height | 22m |
| Pipe Diameter | 1'' |
| Pressure Vessel | 25L |
| Dimensions (Länge x Breite x Höhe) | 800 x 700 x 800 (mm) |
| Weight | 302,8 kg |
Sound values |
EN ISO 3744:1995 |
| Sound pressure level L | 10 dB(A) |
| Sound power level L | 88 dB(A) |
| Uncertainty | 3 dB(A) |
