The motors are controlled in opposite directions so that a vehicle with 2 driven wheels can be realized. All switches are electronic. A speed limit is provided for reverse operation. Adjustable braking operation with feedback is possible. A limitation of the speed to a maximum is possible (on request, it will be fixed) The standard software of the controller can be programmed within certain limits at the customer's request.

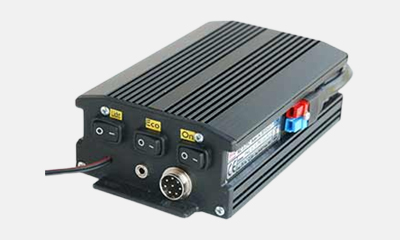

DimensionAnodized aluminum housing 225x100x45 mm, splashproof

Standard Features

• Measurement of operating current (both directions), motor voltage and operating voltage
• Measurement of battery charge with energy meter and deep discharge protection
• Electronic switch, battery protection circuit against deep discharge
• Reverse polarity protection, voltage-proof up to 80V (optionally 100V), maximum current of 25A each, switchable to 10A
• Control inputs for speed, brake and driving direction
• The energy generated during dynamo and braking operation is fed back into the battery
• Optional - charging socket with switching input to switch off the engine when charging can be connected

Special and additional functions

• Switch on via key switch
• external display of the battery charge
• adjustable electronic motor brake
• Optional speedometer connection (for common existing bicycle speedometers)
• external alphanumeric LCD display for displaying various operating parameters.*
